Introduction：

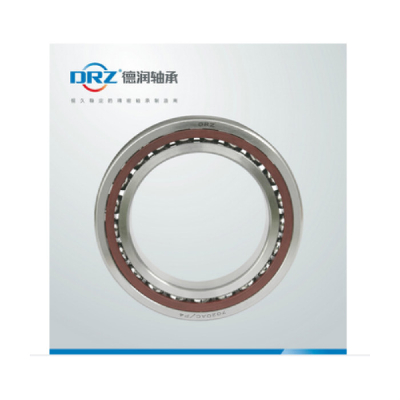

Angular contact ball bearing have high limit rotational speed, they can carry radial load and axialload simultaneously, they cal also withstand purely radial load. The axial load carrying capacity dependson the magnitude of contact angle and increases with increasing contact angle.

An angular contact ball bearing uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load. In high speed applications, such as turbines, jet engines, and dentistry equipment, the centrifugal forces generated by the balls changes the contact angle at the inner and outer race. Ceramics such as silicon nitride are now regularly used in such applications due to their low density (40% of steel). These materials significantly reduce centrifugal force and function well in high temperature environments. They also tend to wear in a similar way to bearing steel—rather than cracking or shattering like glass or porcelain.

Angular contact ball bearing have high limit rotational speed, they can carry radial load and axialload simultaneously, they cal also withstand purely radial load. The axial load carrying capacity dependson the magnitude of contact angle and increases with increasing contact angle.

 Structures

1. Separable angular contact ball bearings

The inner ring and outer ring of this type of bearings cannot be separated and comprises following structures:

Contact angle *=15°, counter bore on outer ring, 7000C type

Contact angle *=25°, counter bore on outer ring, 7000ACtype

Contact angle *=40°, counter bore on outer ring, 7000B type

2. Four-point contact ball bearings

This type of bearings is separable bearings. Whereof, QJ000 type has two piece inner ring and QJF000 type has two piece outer ring. Their contact angles are same as 35°. When received no load or pure radial load, the steel balls of the ball bearing contact with the four points of the rings. Besides the steel balls perform a two point contact with the ring when it is received a pure axial load. In addition, besides the axial load from both directions, this kind of bearing can take torque-load as well.

3. Double row angular contact ball bearings

This kind of bearings can accommodate radial loads as well as axial loads acting in both directions; they can also take torque load. They can restrain the axial displacement from both directions of the shaft or housing; the contact angle is 30° (or 40°).

Cage material

Angular contact ball bearings generally adopt pressed steel cages or copper solid cages. Double-row angular contact ball bearings generally adopt copper solid cages.

Sealing solutions

  Bearings sealed on both sides are lubricated for the life of the bearing and should not be washed or relubricated. The bearings are considered virtually maintenance free. If they are to be hot mounted, an induction heater should be used.

we do not recommend heating capped bearings above 80 °C (175 °F). However, if higher temperatures are necessary make sure that the temperature does not exceed the permissible temperature of either the seal or grease, whichever is lowest. During start up, grease may leak at the inner ring. For bearing arrangements where this would be detrimental, special design steps must be undertaken.
